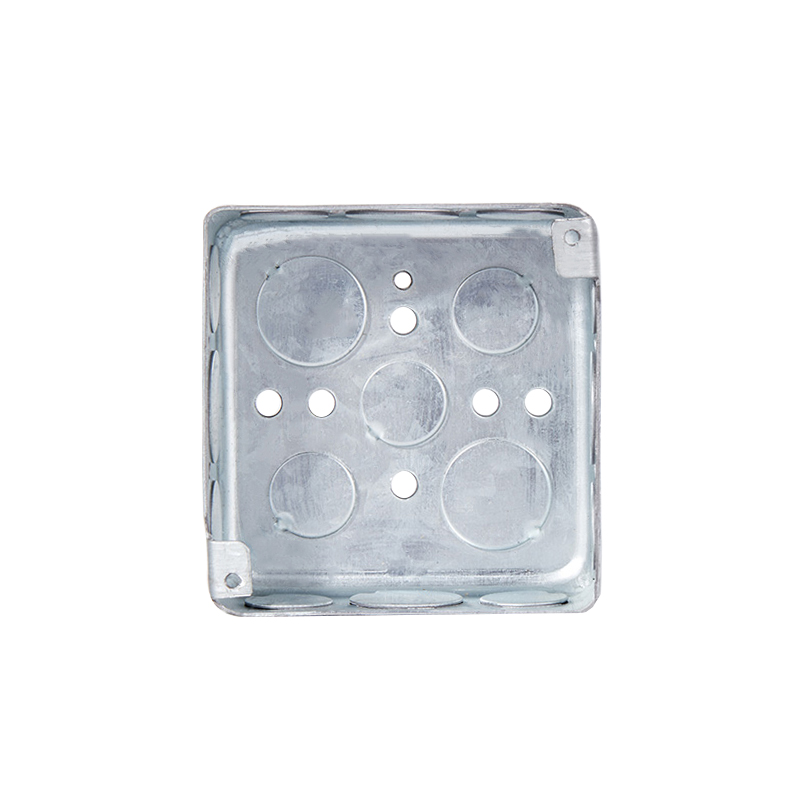

Square Conduit Box 4x4 Inch

Features

* Combination screw heads provide for faster installation

* Thru-the-wall box is designed for shallow wall applications and allows for attachment of wallplate to both faces of box

* Knockouts allow for design and installation flexibility

Application

* Boxes are installed in ceilings or walls for lighting fixtures, switches or receptacles

* Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices

* Drawn boxes are ideal for exposed work applications

Standard Material

* Steel

Standard Finish

* Zinc plated

Request For Quotation
  • Description
Steel Square Conduit Box 4"x4"

Description Thickness Knockouts
MM Sides Bottoms
4X4 square box,1-1/2"deep,1/2"KO 0.6-1.6MM 1/2" 1/2"
4X4 square box,1-1/2"deep,3/4"KO 0.6-1.6MM 3/4" 3/4"
4X4 square box,1-1/2"deep,1/2"&3/4"KO 0.6-1.6MM 1/2"&3/4" 1/2"&3/4"
4X4 square box,1-1/2"deep,1/2"in3/4"KO 0.6-1.6MM 1/2"in3/4" 1/2"in3/4"
4X4 square box,2-1/8"deep,1/2" KO 0.6-1.6MM 1/2" 1/2"
4X4 square box,2-1/8"deep,3/4" KO 0.6-1.6MM 3/4" 3/4"
4X4 square box,2-1/8"deep,1/2"&3/4"KO 0.6-1.6MM 1/2"&3/4" 1/2"&3/4"
4X4 square box,2-1/8"deep,1/2"in3/4"KO 0.6-1.6MM 1/2"in3/4" 1/2"in3/4"
5X5 square box,1-1/2"deep,1/2"KO 0.6-1.6MM 1/2" 1/2"
5X5 square box,1-1/2"deep,1/2"&3/4"KO 0.6-1.6MM 1/2"&3/4" 1/2"&3/4"
