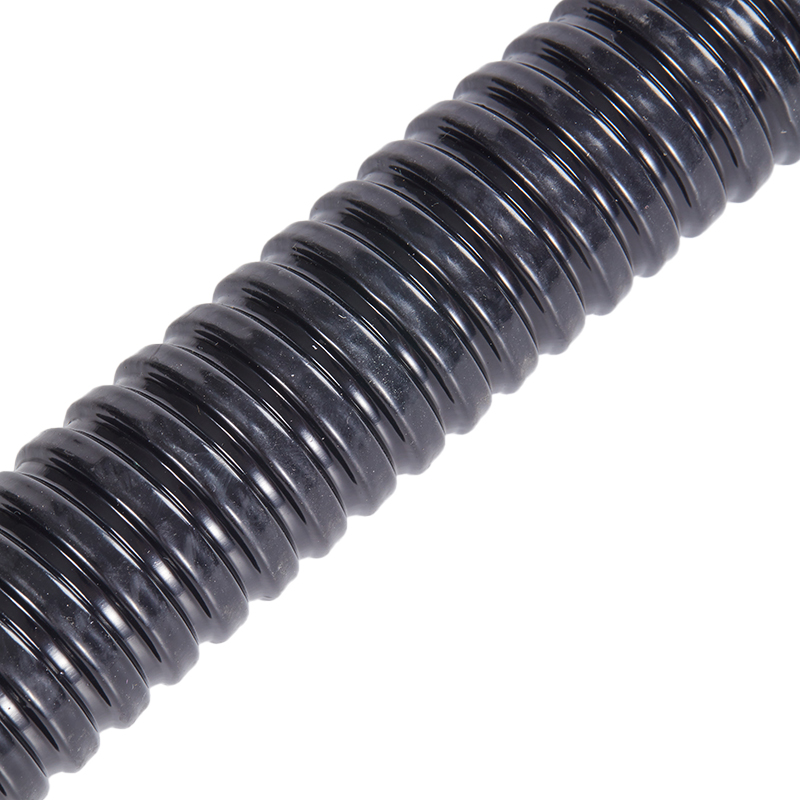

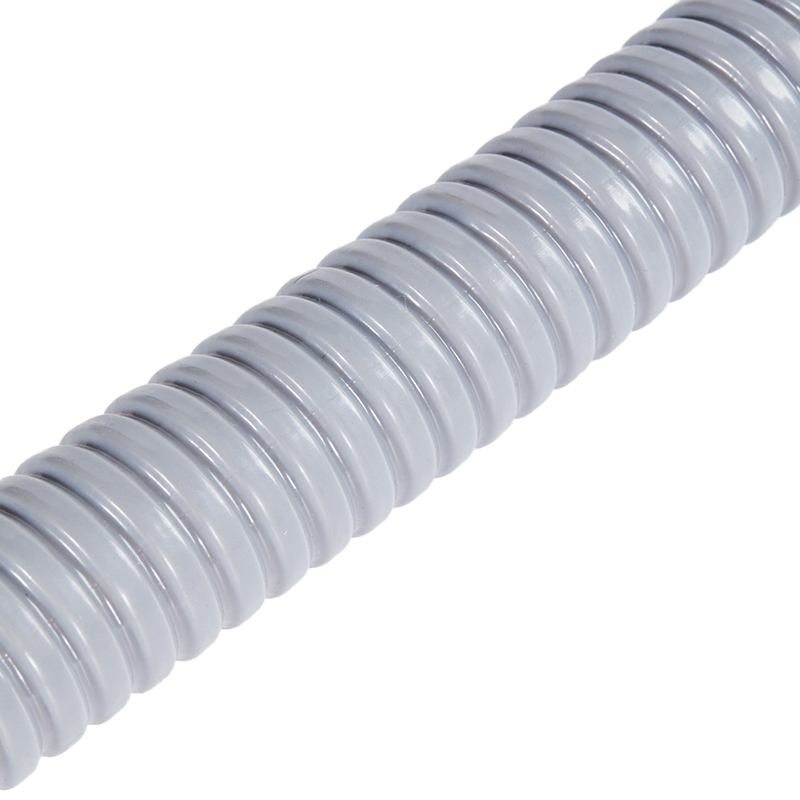

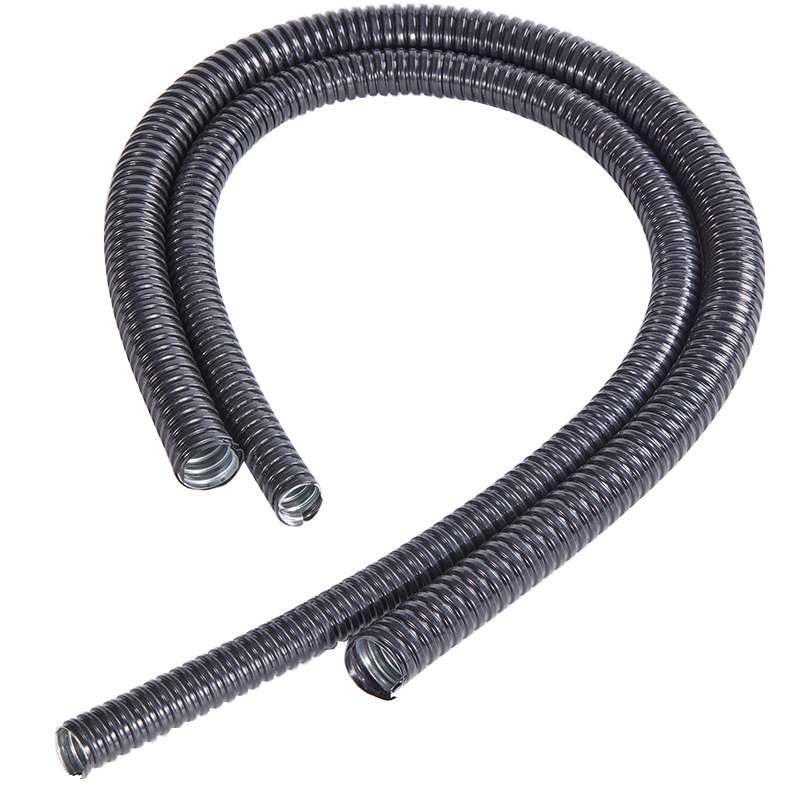

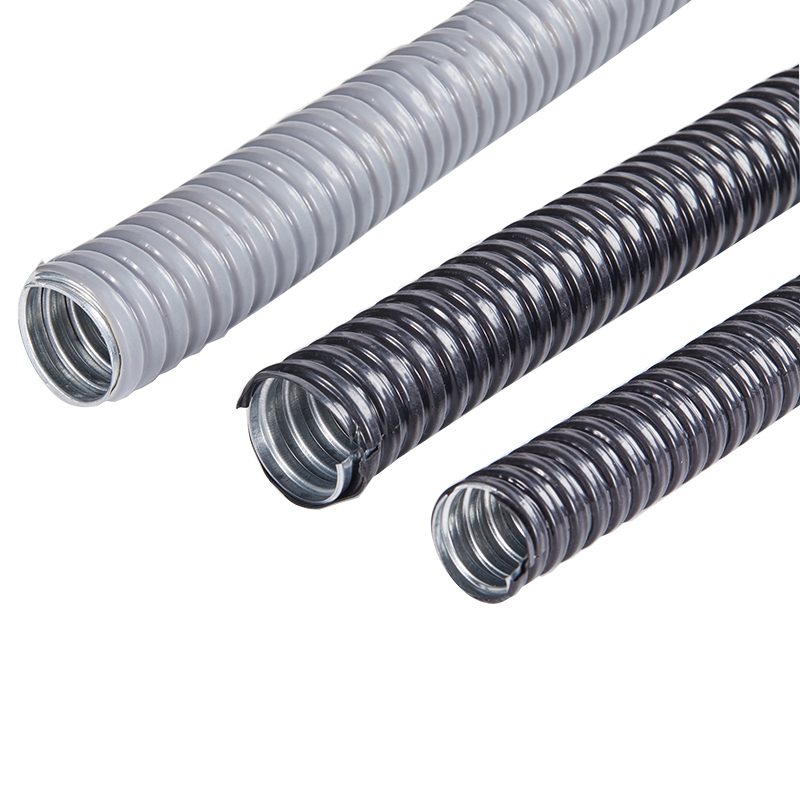

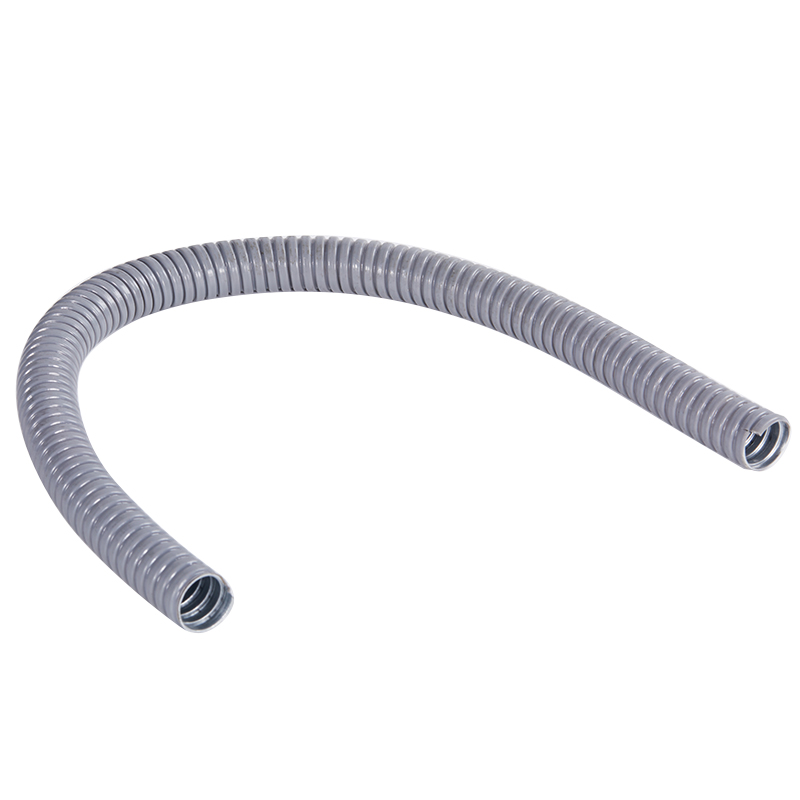

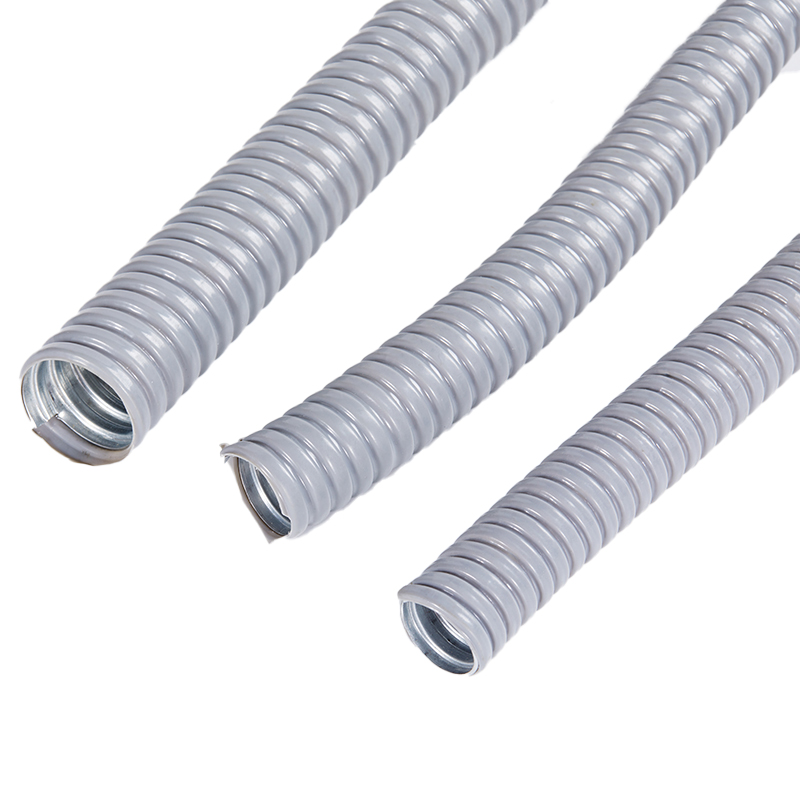

Liquid Tight Flexible Steel Conduit-Thin PVC Coated

Features

* Corrosion and crush resistant
* Smooth interior for easy wire pull-through
* Easy installation to follow contours

Applications

* Voice, data, communications and video cables
* Motor feeder, branch and control circuit conductors and cables
* Elevators, escalators, and hoistways
* Concealed or exposed installations

Standard Material

* Galvanized steel; PVC Coach

Request For Quotation

Description

Liquid Tight Flexible Steel Conduit-Thin PVC Coated

Constuction	Normal Size	Inside Diameter		Outside Diameter		Min.Bend Radius	Length Of Reel
	Inch	Min(MM)	Max(MM)	Min(MM)	Max(MM)	MM	MM
1.Glavanized steel, core 2.Squarelock style 3.Vacuum PVC jacket, flexible Working Temperature: -10°--70°	3/8"	12.3	12.8	16.7	17.2	50	50
	1/2"	15.8	16.3	20.2	20.7	65	50
	3/4"	20.7	21.2	25.5	26.1	75	50
	1"	26	26.6	31.6	32.2	100	50
	1-1/4"	34.7	35.4	40.8	41.5	125	30
	1-1/2"	40	40.6	46.6	47.2	150	30
	2"	51.3	51.9	58.7	58.7	175	20
